New Full set Medusa Box Medusa PRO Box Testpoints + JTAG Clip MMC For LG For Samsung For Huawei with Optimus cable Free Shipping


Availability: In Stock

Repair tool wholesale hk MCN Solder wire 0.2 0.3 0.4 0.5 0.6mm 5pcs/lot free shippingUSD 15.00/lotReplacement accessoires tools Kaisi Solder wire High-purity disposable solder cable tin wire 50g 0.3 0.4 0.5 0.6mm free shippingUSD 6.60...


$168.00


Tags: Medusa Box

medusa 1medusa2medusa3medusa4medusa5

Medusa PRO Box is a professional phone flashing and mobile unlocking tool that lets you work with a wide range of Samsung, Huawei, LG, Motorola, Siemens, Sony Ericsson,Vodafone, ZTE and other mobile devices through JTAG, USB and MMC interfaces. The main intended purpose of Medusa PRO Box is repairing dead boots of the devices (mobile phones, PDAs, modems, etc.) or these devices recovery, until they become fully operational. Medusa PRO Box Software is a windows application for Medusa PRO Box, provides convenient interface for end user.

Medusa PRO Box - Features:

Medusa PRO - Hardware Features:

  1. Fast USB 2.0 high-speed hardware
  2. JTAG support for ARMv5, ARMv6, ARMv7
  3. Up to 24MHz JTAG speed
  4. Transfer speed via JTAG interface up to 1 MB/s
  5. eMMC support up to MMC 5.0 standard
  6. 1-bit and 4-bit MMC bus modes are supported
  7. Standard 20-pin JTAG interface
  8. Built-in JTAG PIN finder
  9. Built-in USB CCID smart card reader
  10. Built-in RJ45 Multiport, Unibox capable

Medusa PRO - Software Features:

  1. Full-featured professional-grade Medusa PRO software
    Software fully supports all operations (Read, Write and Edit) with any required memory sections through JTAG, USB and MMC interfaces.
  2. Easy and smart Graphical User Interface (GUI), suitable for beginners and for experts
  3. Fast repair of target device with Smart-Repair-Files (SRF)
  4. SRF contains partition data and other necessary data (help files and diagrams)
  5. Data in SRF is compressed (less to download, quicker to work)
  6. Built-in Partition Manager
    Now you can edit and save required for your work partitions, this leads to convenient and easy way to service devices. In addition, with Partition Manager you may open Full Flash file in binary format, edit it and write it back to the device.
  7. Simple per-partition operations (Read, Write, Erase, Edit) of the target storage device
  8. Built-in Smart-Repair-File Constructor with Partition Manager for creating custom SRFs
    SRF file could be taken from the device or read out from Full Flash file in binary format. This feature allows the user (without developer’s assistance) add devices to the list of supported models, which are not officially supported yet. User will be allowed to upload that custom SRF file into separate section of Support Zone for further analysis by developers. If custom SRF file would be recognized as a legitimate and correct, name (or nickname) of the author will be presented in the following update. Thus, user has been given the opportunity to participate in the development of Medusa PRO and became known in certain circles.
  9. Built-in Download manager
    Allows you to download files directly from the software.
  10. NAND, OneNAND, NOR and eMMC storage devices are supported via JTAG interface
  11. NAND, OneNAND and eMMC storage devices are supported via USB interface
  12. eMMC storage devices are supported via MMC interface
  13. Up to 1 MB/s transfer speed via JTAG interface *
  14. Up to 6 MB/s transfer speed via MMC interface with 4-bit bus *
  15. Up to 2.2 MB/s transfer speed via MMC interface with 1-bit bus *
  16. Windows 10 compatible software

* All measurements were done on ASUS M5A97 R2 motherboard with AMD FX-8370 CPU and with Medusa PRO Box connected to USB 3.0 port, located directly on motherboard.

Comparison Table

Hardware Medusa Pro Medusa
USB 2.0 High-speed
+
USB 2.0
JTAG support for ARMv5, ARMv6, ARMv7
+
+
Up to 24MHz JTAG speed
+
12 MHz
eMMC support up to MMC 5.0 standard
+
-
1-bit and 4-bit MMC bus modes are supported
+
-
Standard 20-pin JTAG interface
+
RJ50
Transfer speed via JTAG interface, Up to…
1 MB/s
225 KB/s
Transfer speed via MMC interface with 4-bit bus, Up to…
6 MB/S
-
Transfer speed via MMC interface with 1-bit bus, Up to…
2.2 MB/s
-
USB CCID Smart Card Reader
+
-
RJ45 Multiport, Unibox Capable
+
-
Software Medusa Pro Medusa
Partition Manager
+
-
SRF Constructor
+
-
JTAG PIN finder
+
-
Built-in C scripting language for advanced users
upcoming feature
-

Medusa PRO Box - Package Contains: *

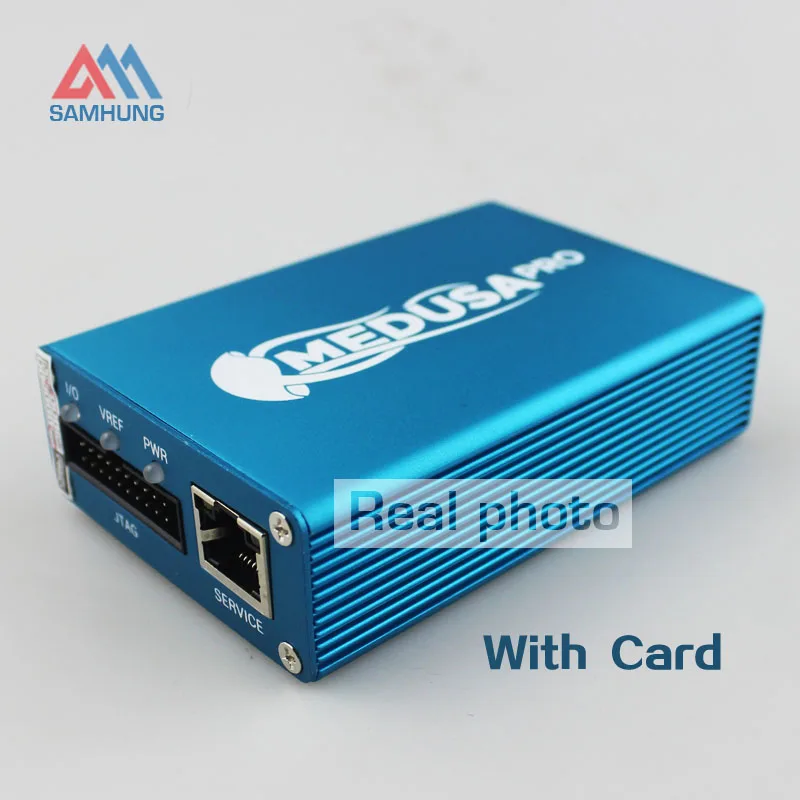

  • Medusa Pro (box with a smart card) - 1 pc.

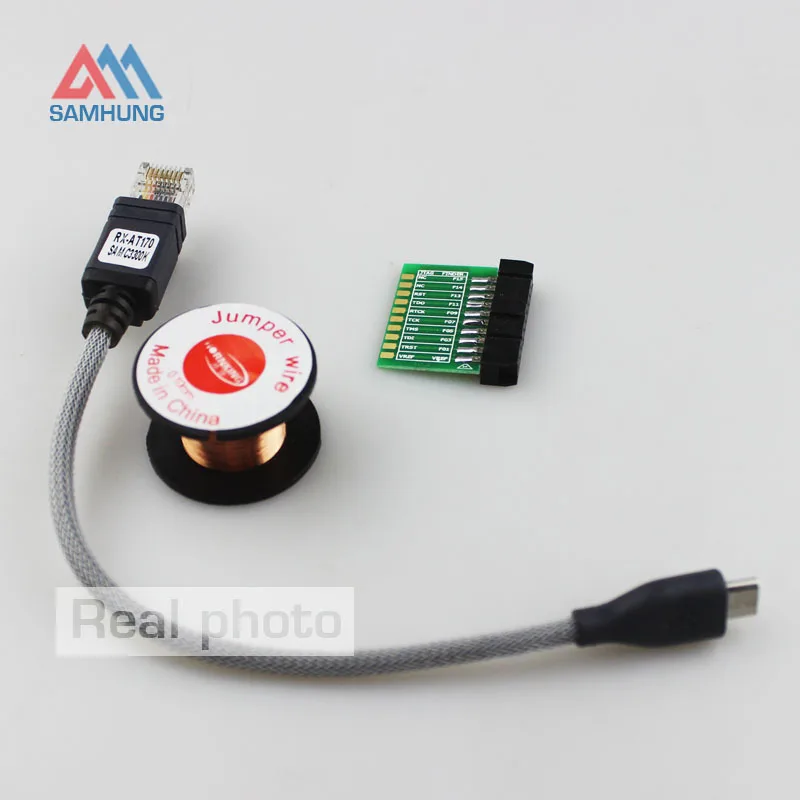

  • Micro UART cable (with 530K resistor) for Samsung C3303K - 1 pc.

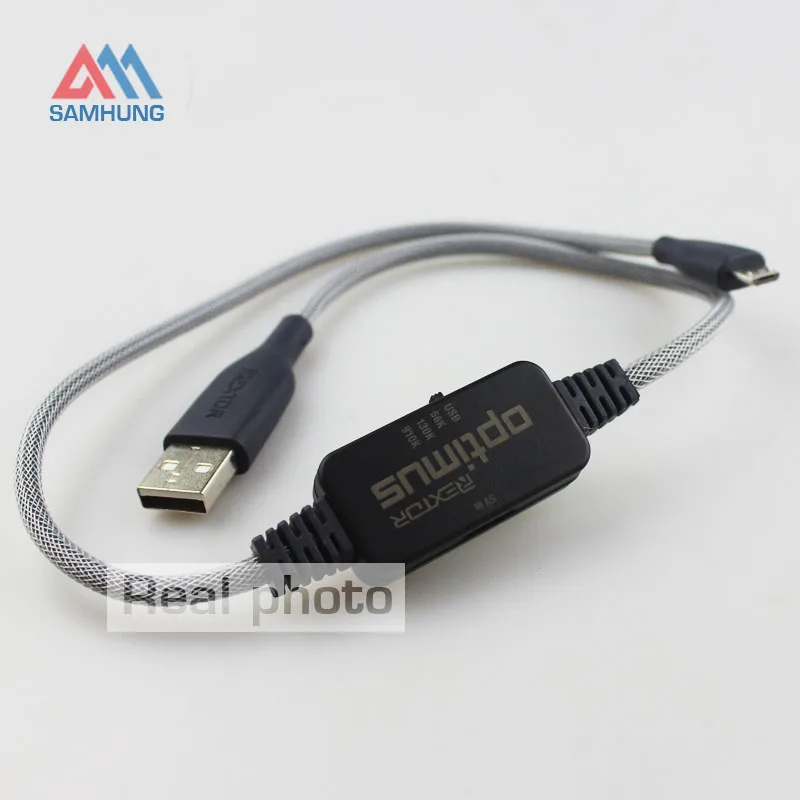

  • Optimus cable - 1 pc.
  • Medusa Pro JIG Adapter - 1 pc.
  • Copper wire 0.1 mm - 1 pc.

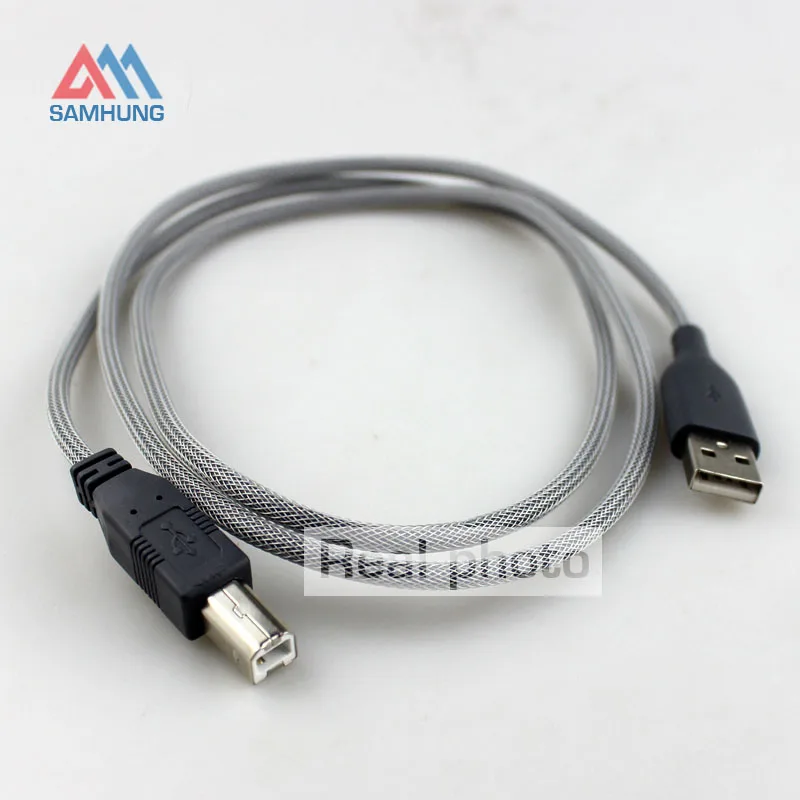

  • USB A-B cable - 1 pc.
  • 6 months of warranty
  • Free access to repair file download area at Boot-Loader v2.0
  • Free Medusa Pro Support Area
